Joint: High grade PP, to be 360 swiveled.
Dome/cup hood: Diameter 375mm.
High grade PP, red, white and transparent for choose.
Swing device: with 360°swing device, take fixed rack as center, max enabling movement radius to 770mm.

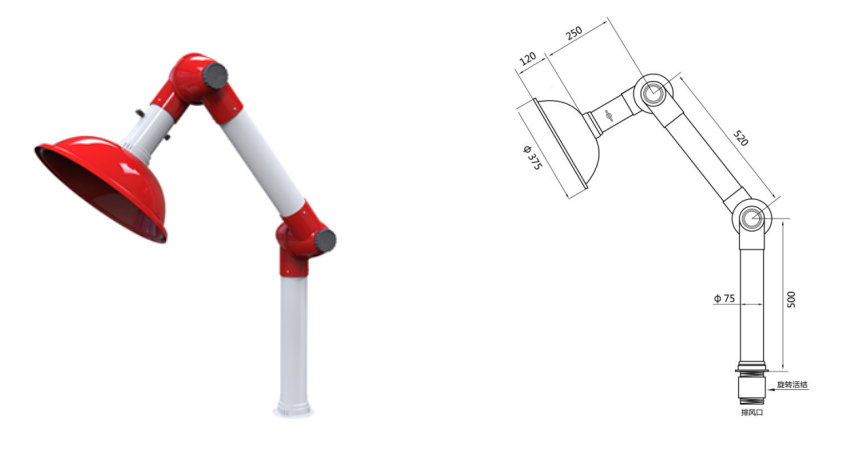

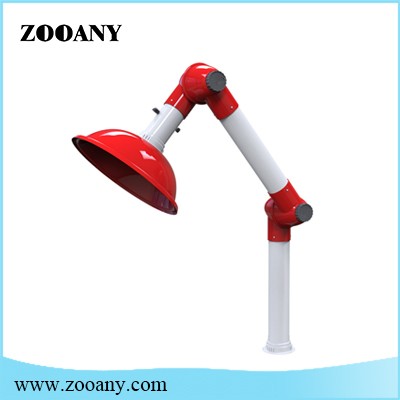

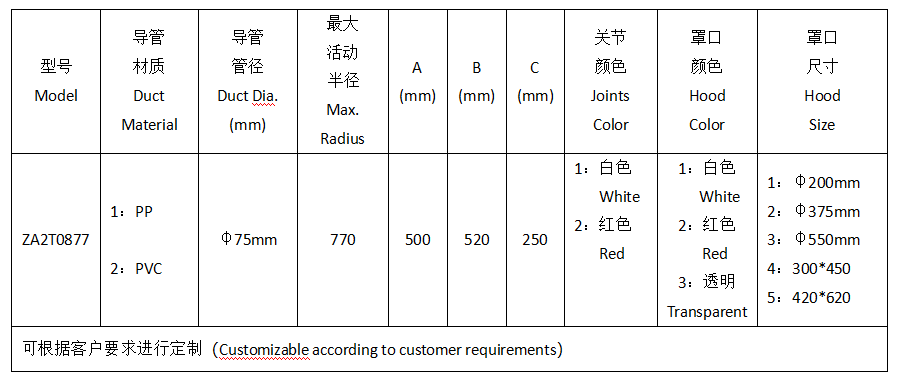

ZA2T PP Table Fume Extractor (2 Joints)
1. Joint: High grade PP, to be 360°swiveled,easy to dismantle, assemble &clean.
2. Sealing ring: Low-friction treated rubber.
3. Adjustable joint knob: with a s/s bearing inside, locked with center bolt.
4. Damper: To manually adjust air flow with a knob.
5. Dome/cup hood: High Grade PP/PC.
6. Swing device: with 360°swing device, take fixed rack as centre, max enabling movement radius to 770mm.
7. Installation Bracket: Injection of plastics from a complete Mold,mounting panel strongly connected to the joint.
