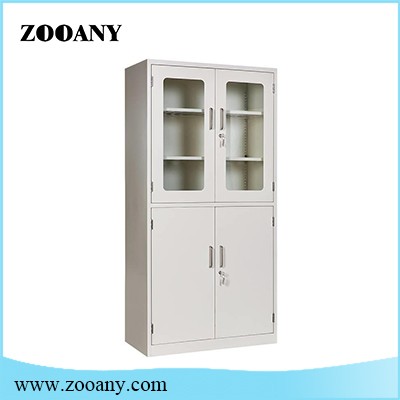

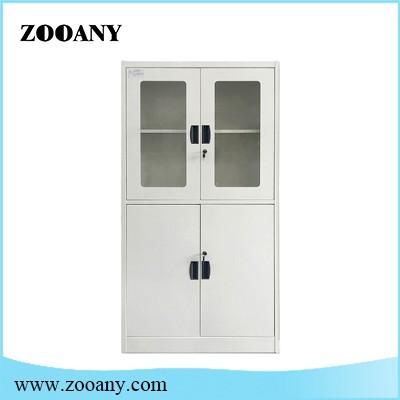

All-steel lab medicine cabinet

All-steel medicine cabinet graphic details

1．The cabinet can be made of 0.8mm, 1.0mm, 1.2mm thick steel plates, imported automatic CNC laser cutting machine blanking, Fully automatic CNC bending machine for one-time bending and forming, and the gas shielded welding.

2．The surface of the coating is decontaminated, degreased and washed with copper, epoxy resin powder electrostatically sprayed, cured at high temperature, and impact-resistant.

3．The overall structure is disassembled and assembled, with a single-layer structure, which is reinforced as a whole, and is not easy to deform and shake.

4．Standard cabinet size: 900*450*1800mm, 1200*450*1800mm. Other sizes can also be customized.

5．The hinge is made of DTC brand large-curved hinge, which is durable.

6．The handle is a PP plastic concealed clasp handle or Stainless steel arch handle.

7．The middle of the laminate and the cabinet material is a fixed laminate, the upper part is 2 movable, and the lower part is 1 movable laminate.

8．By default, the door panel is a 4mm thick glass door embedded in the split glass door, and the bottom is a single layer of the split steel plate door.

9．The default overall standard of color is gray and white.
