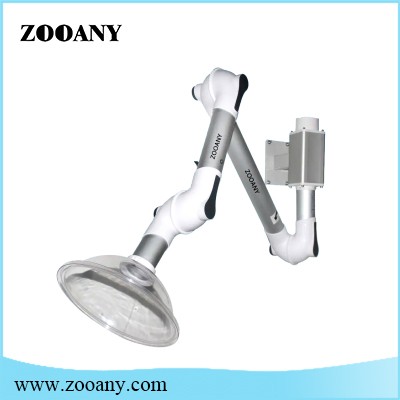

ZAAW08 Aluminum Alloy Wall Fume Extractor φ75mm

Joint: High grade PP, to be 360 swiveled.
Dome/cup hood: Diameter 375mm/550mm,
High grade PP, red, white and transparent for choose.

ZAAW08 Aluminum Alloy Wall Fume Extractor φ75mm


1. Joint: High grade PP to be 360°swiveled, easy to dismantle, assemble &clean.

2. Center bolt: 304 stainless steel.

3. Adjustable joint knob: with a s/s bearing inside, locked with center bolt.

4. Damper: To adjust air flow with a knob manually.

5. Dome/cup hood: High grade PP/PC.

6. Duct Material: 75mm aluminum alloy/PP/PVC.

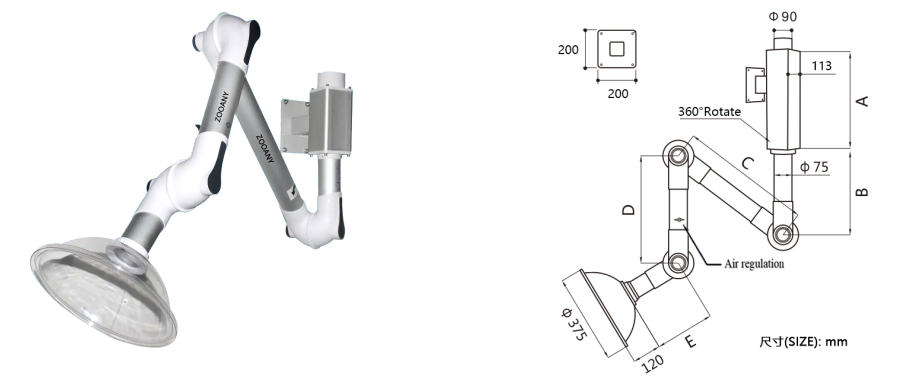

7. Swing device: with 360°swing device, take fixed rack as center, max enabling movement radius to 1500mm.

8. Installation Bracket: Made by Aluminum alloy square pipe (113*113mm), fastness, corrosion resistance.

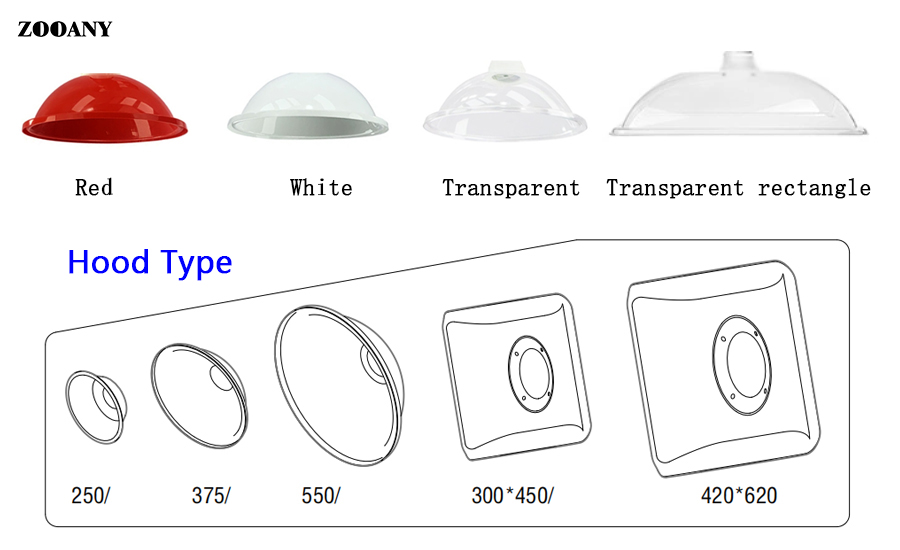

HOOD TPYE1.jpg
