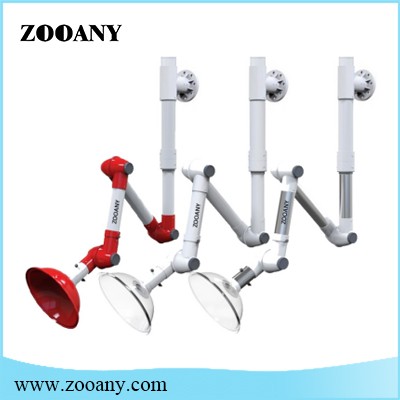

Wall Fume Extractor (ZAPW08) φ75mm

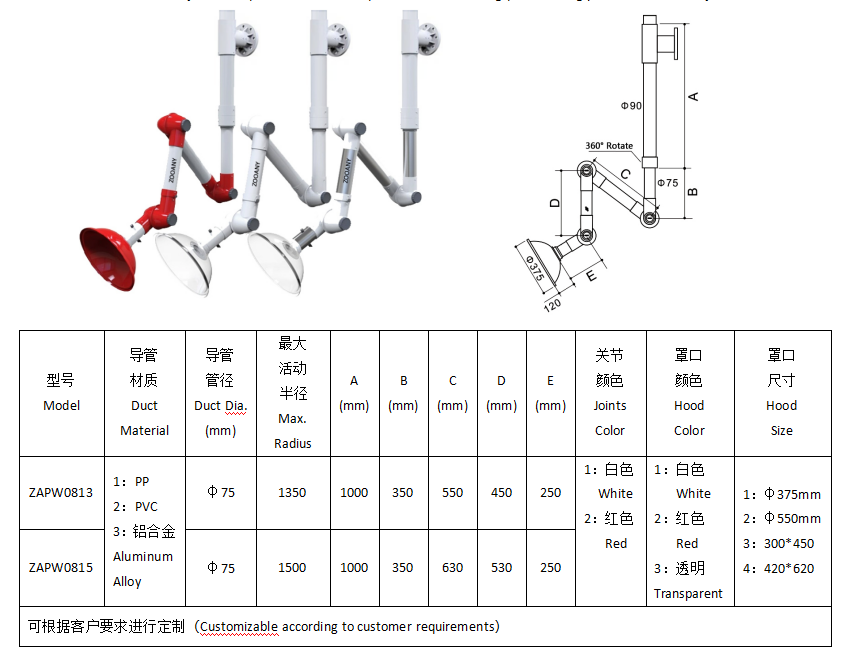

ZAPW08 Wall Fume Extractor (φ75mm)

1. Joint: High grade PP to be 360°swiveled, easy to dismantle, assemble &clean.

2. Center bolt: 304 stainless steel.

3. Adjustable joint knob: with a s/s bearing inside, locked with center bolt.

4. Damper: To adjust air flow with a knob manually.

5. Dome/cup hood: High grade PP/PC.

6. Duct Material: 75mm PP/PVC/aluminum alloy.

7. Swing device: with 360°swing device, take fixed rack as center, max enabling movement radius to 1500mm.

8. Installation Bracket: Injection of plastics from a complete Mold, mounting panel strongly connected to the joint.
